Portuguese Nau  from the XV  – Scale 1/30

In the 16th and 17th centuries, the nau was an armed ship for trade. She had three masts with large round sails in the main and in the fore masts and a latin sail in the mizzen. She had huge castles in the stern and the bow.
Depending on their dimensions, naus could  carry between 100 to 1200 tons and were widely used in the trade between Portugal and the East.
A fleet of six ships commanded by Afonso de Albuquerque arrived at Muscate in 1507. These naus would have between 300 and 400 tons burden and although there are no plans of them, we built this model upon the information displayed on Portuguese ship construction treatises from the end of the 16th century, ancient iconography and recent archaeological investigations

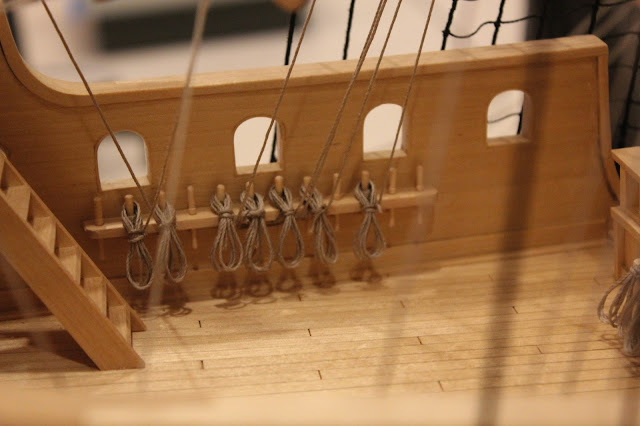

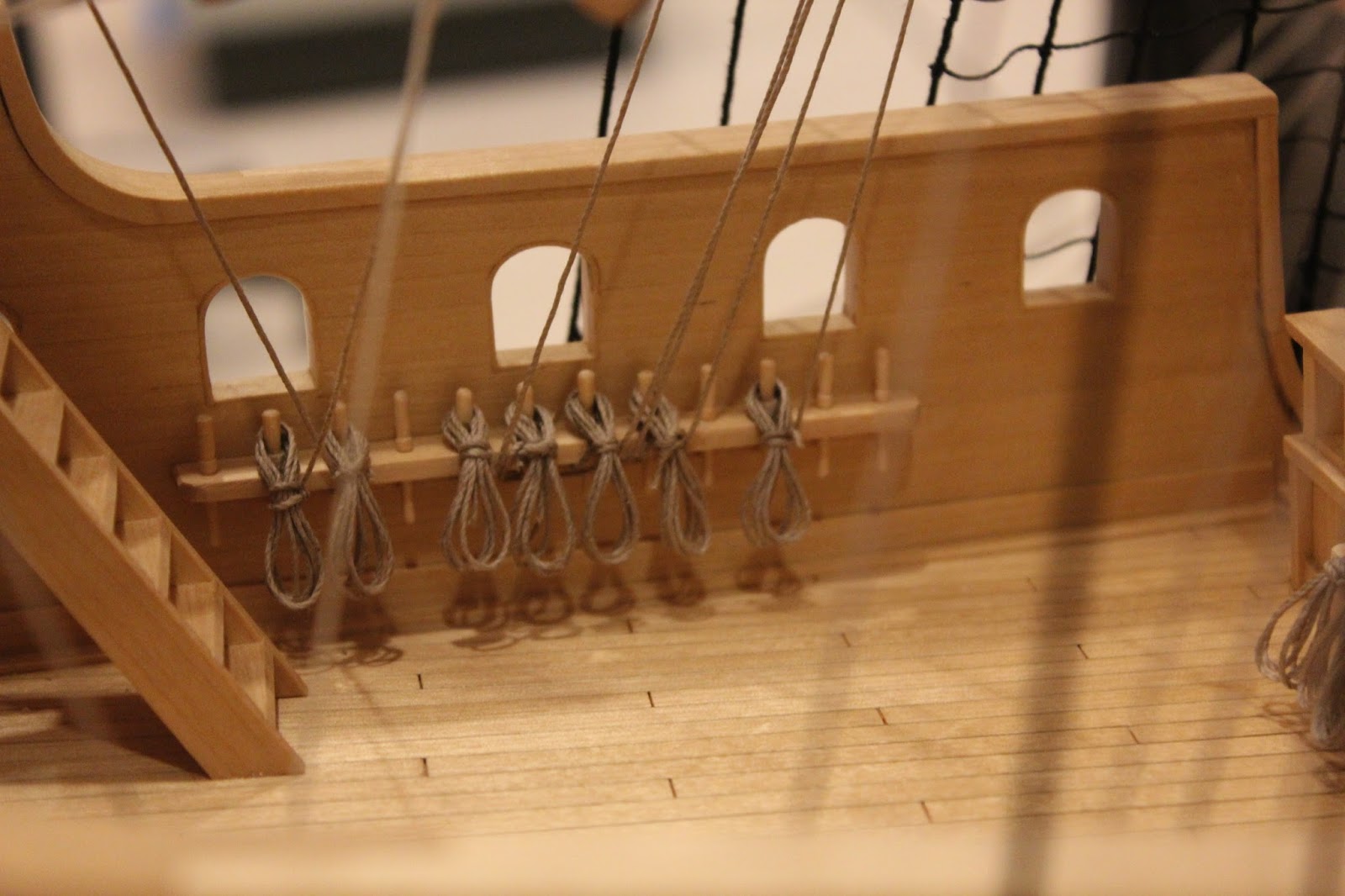

Birch wood construction on a maritime plywood structure, wooden masts and yards rigging in linen, sails in canvas, artillery in metal.
Scale 1/30 museum standard ship model  with 1,80 metres long and 1,25 metres high.
It took me around one year of full time work to complete this model, which has been commissioned by the Portuguese Fundação Calouste Gulbenkian to be donated to the National Museum of Oman.
The model is currently on display at the "Oman and the World Gallery", National Museum of Oman, Muscat, Sultanate of Oman.















Nau portuguesa do séc XV

Nos séculos XVI e XVII a nau era um navio de comércio armado. Tinha três mastros com grandes velas redondas no mastro grande e no traquete e uma vela latina na mezena. Tinha castelos de proa e popa de grandes dimensões. Dependendo das dimensões, as naus poderiam transportar entre 100 a 1200 toneladas e eram muito utilizadas no comércio entre Portugal e a Índia.
O modelo de nau a construir pretende recriar a morfologia de uma nau do século XV com duas cobertas,14 rumos de quilha e 350 toneladas de porte.
A construção incorpora os resultados das investigações mais recentes e constitui uma oportunidade para proceder a uma revisão científica sobre a matéria.
Construção em madeira de bétula sobre uma estrutura de contraplacado marítimo.
Casco e convés com duas camadas de madeira de bétula, mastros e vergas em madeira, aparelho fixo e de laborar em linho e velas em tela. Batel em madeira, artilharia em metal. O modelo não será pintado, mas envernizado para realçar o trabalho realizado e pôr em evidências as técnicas de colocação dos forros de costado e cobertas.

Dimensões do modelo (aprox.)
Escala: 1/30
Comprimento total com aparelho: 1,80 metros
Altura total com aparelho: 1,25 metros
Boca: 0,30 metros
Comprimento da verga principal: 0,80 metros
